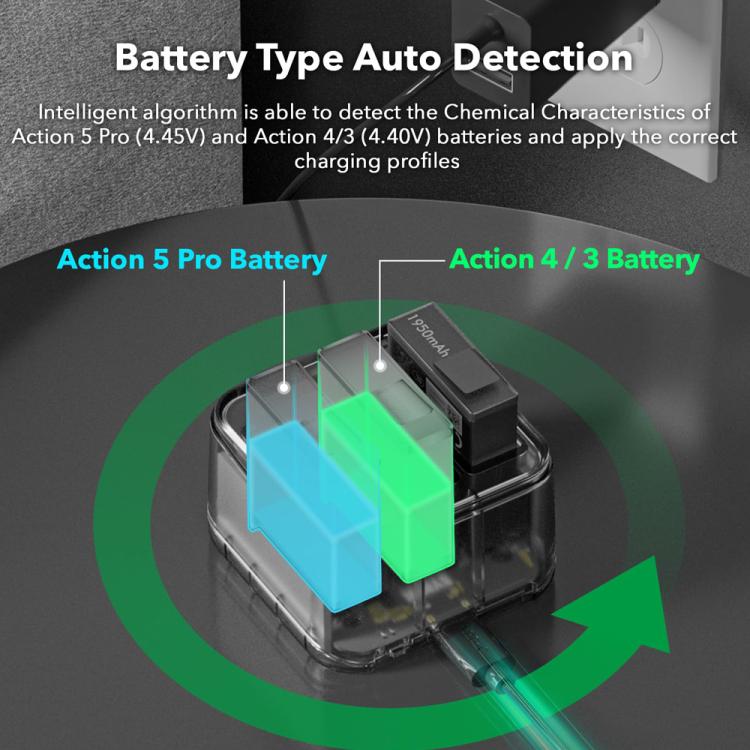

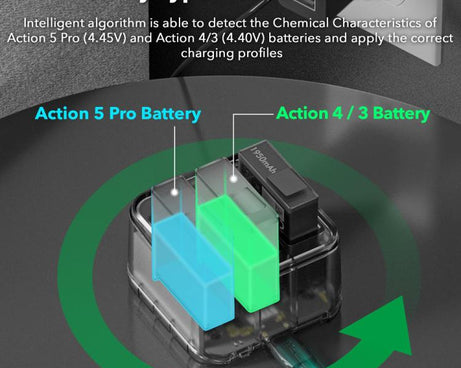

1. Charging hub designed specifically for DJI Osmo Action 5 Pro / Action 4 / Action 3 batteries. Automatically detects Action 5 Pro / 4 / 3 batteries (supports mixed charging). Can simultaneously charge 3 batteries.
2. Battery Inspector: Insert the battery into the charging hub. Without connecting to any power source, you can check the battery's charge percentage, voltage, current, cycle count, and temperature.

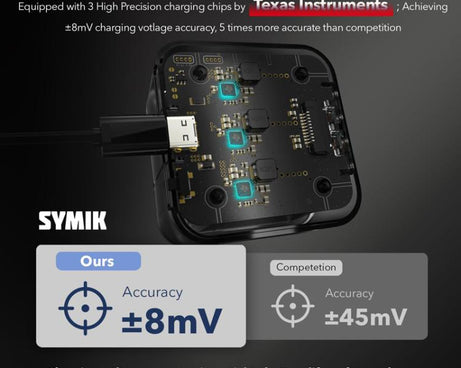

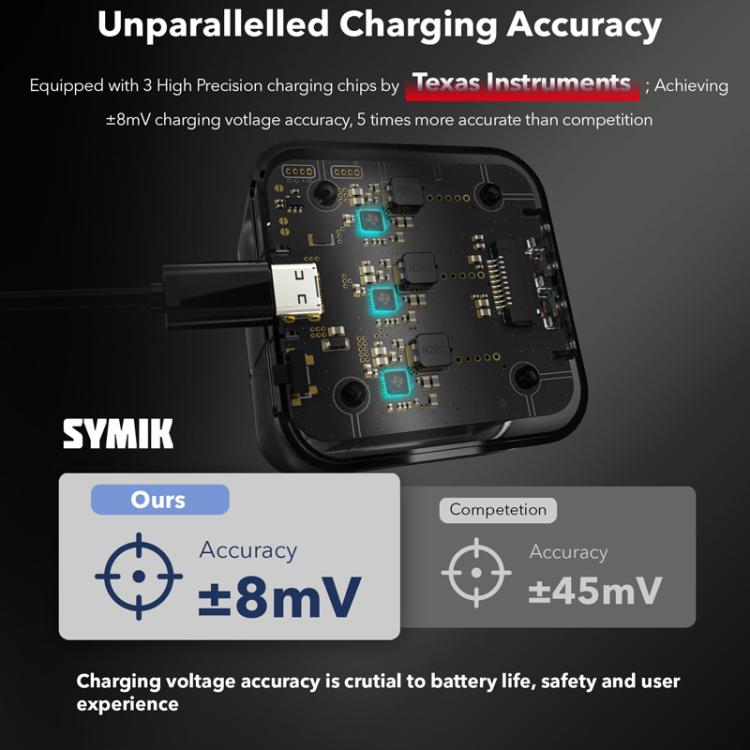

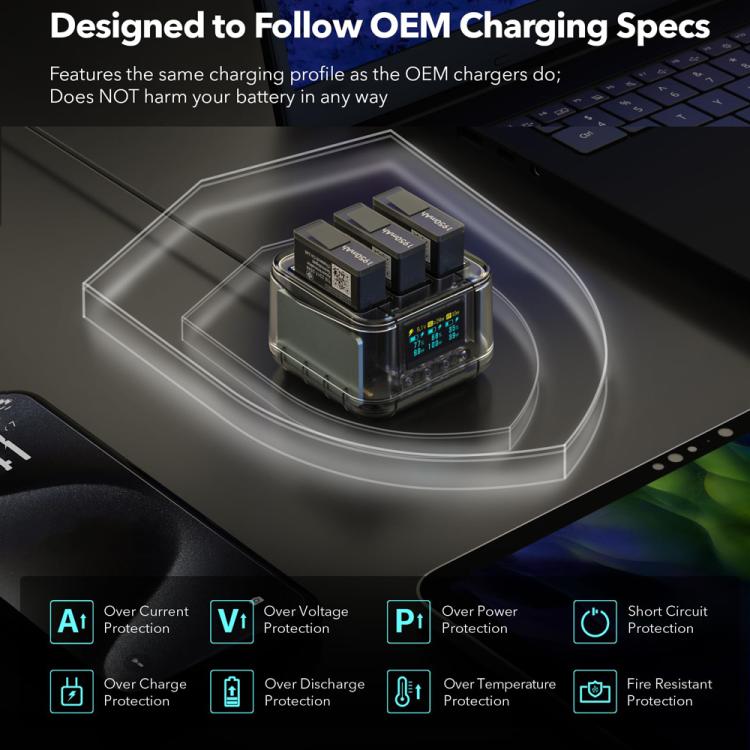

3. Precision Charging Technology: +/-8mV charging voltage accuracy provides precise power management, helping to extend the overall battery lifespan.

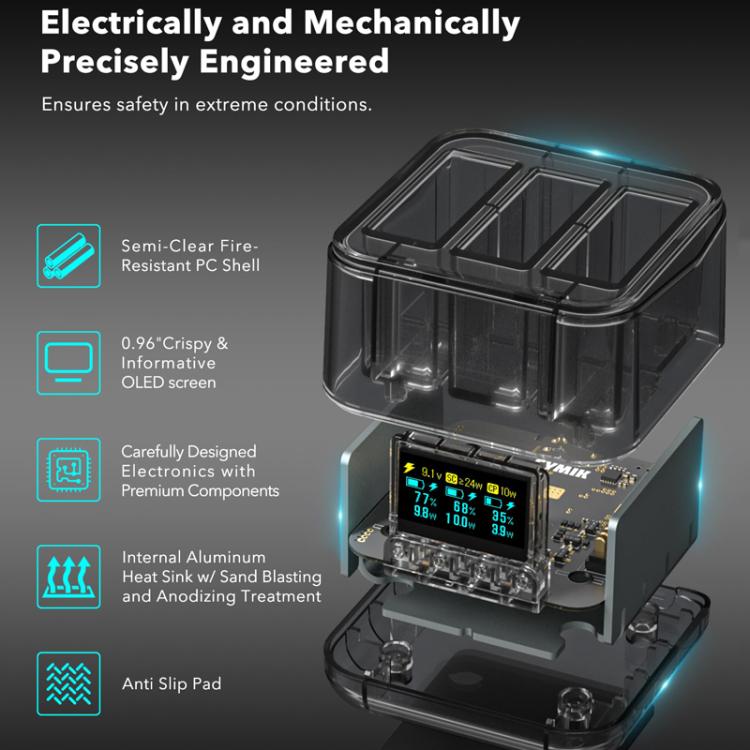

4. Equipped with a 0.96-inch clear OLED screen. By reading the battery data bus, it displays battery charge percentage and rich battery/charging information.

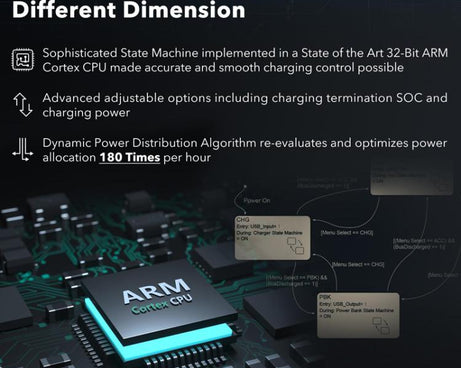

5. Optimized Charging Algorithm: Built-in intelligent algorithm dynamically allocates charging power between channels, optimizing charging speed while maintaining battery health.

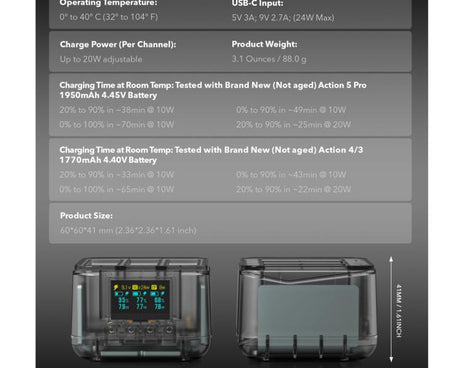

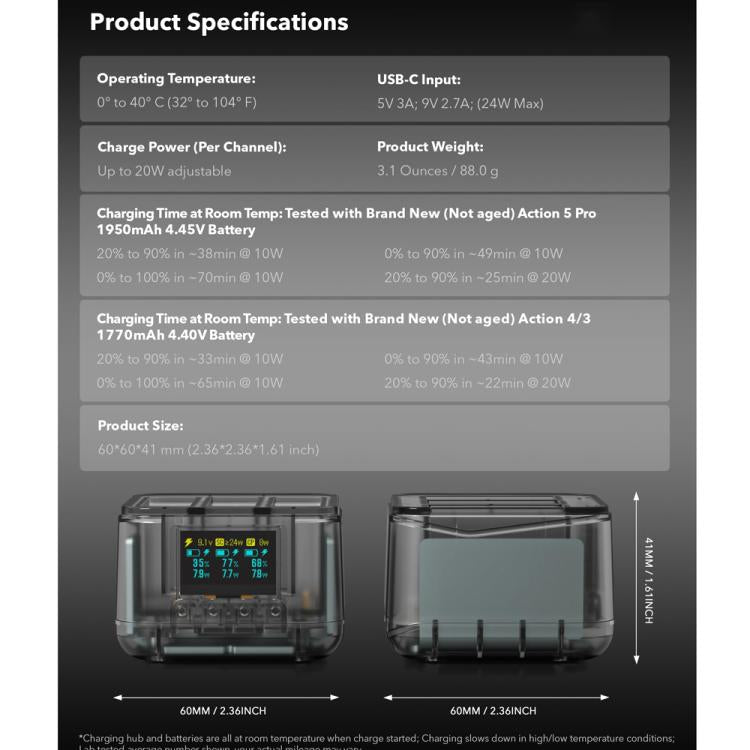

Parameters:
1. Operating Environment Temperature: 0-40 degrees Celsius (32-104 degrees Fahrenheit)
2. USB-C Input: 5V 3A; 9V 2.7A; (Max 24W)
3. Charging Power Limit (Per Channel): Up to 20W adjustable

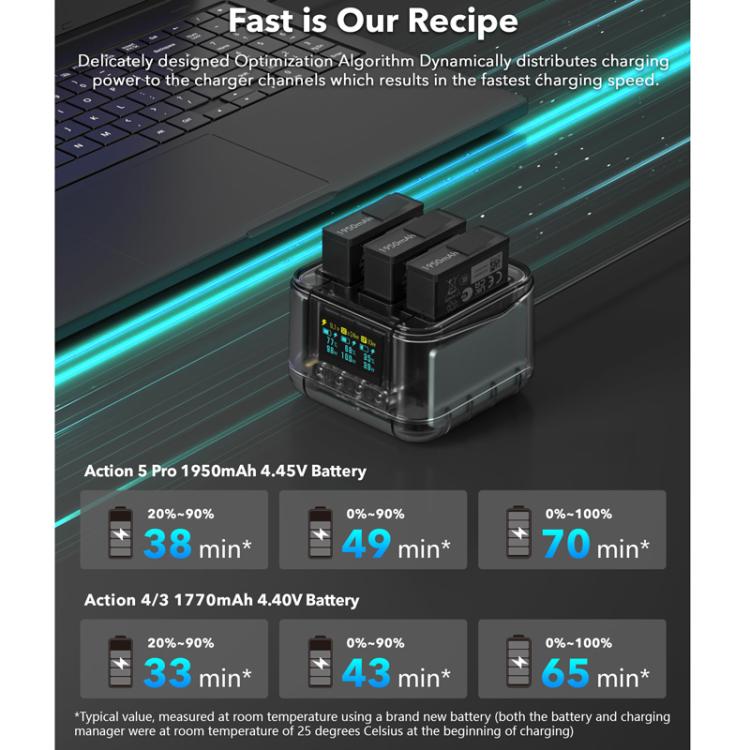

4. Charging Time at Room Temperature:
-- Tested using new (unaged) Action 5 Pro 1950mAh 4.45V battery:
--10W charging power: 20% to 90% within 38 minutes; 0% to 90% within 49 minutes; 0% to 100% within 70 minutes.
--15W enhanced charging power: 20% to 90% within 25 minutes.
-- Tested using new (unaged) Action 4/3 1770mAh 4.40V battery:
--10W charging power: 20% to 90% within 33 minutes; 0% to 90% within 43 minutes; 0% to 100% within 65 minutes.
--15W enhanced charging power: 20% to 90% within 22 minutes.
5. Product Weight: 3.1 oz / 88.0 g
6. Product Dimensions: 60 x 60 x 41 mm (2.36 x 2.36 x 1.61 in)
Package Contents: Charging Hub + Chinese/English User Manual + Color Box Packaging. Excludes USB data cable.
Specification:
| General |
| Compatible with |
DJI: Osmo Action 5 Pro
|
|
| Package Weight |
| One Package Weight |
0.12kgs / 0.27lb |
| One Package Size |
10cm * 10cm * 7cm / 3.94inch * 3.94inch * 2.76inch |
| Carton Weight |
15.50kgs / 34.17lb |
| Carton Size |
42cm * 34cm * 32cm / 16.54inch * 13.39inch * 12.6inch |
| Loading Container |
20GP: 583 cartons * 120 pcs = 69960 pcs 40HQ: 1354 cartons * 120 pcs = 162480 pcs
|
|
